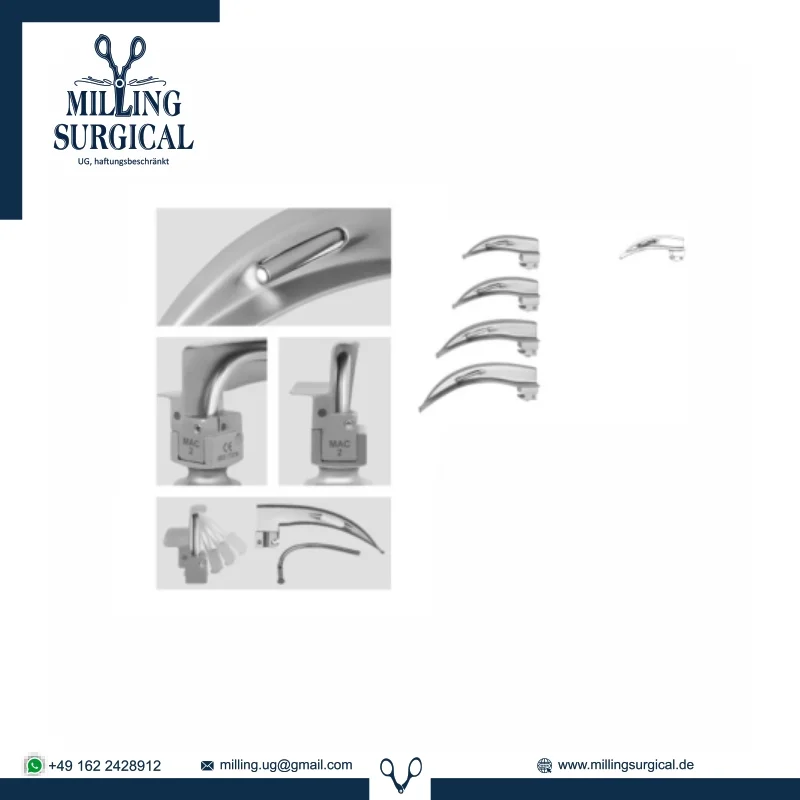

Fiber Optic (F.O.) Laryngoscope Blade
INTERCHANGEABLE
LIGHT CONDUCTOR
Macintosh FitEr Optic laryngoscope blade with 4mm F.O light conductor,
up to 6500 individual micro-fibers for improved light transmission and
longer life.
Blade with Removable light conductor which is simple to remove and
refit without any tool.
Integrated Fiber optic for the best Possible Illumination.
303/304 type high grade Stainless Steel with Satin Finish.
Smooth shagE avoids sharp edges.
Fully autælavable and easier to clean.
Compatible with all Standard Fiber optic handles.
Fiber optic Handle with LED light.
According to ISO 7376 Standard.
Power Source
All our Fiber Optic handles are powered by
Standard battery handle: 2 C ” size
Pediatric battery handle: 2 “AA ” Size
Stubby battery handle: 2″ AA’ size
Macintosh Fiber Optic (F.O.) Laryngoscope Blades. (Interchangeable)
Size
1
2
3
4
Reference no.
MS.191-020
MS-191-021
MS.191-022
Blade
Reference no.
MS.191-016
MS.191-017
MS.191-018
MS-191-019
Length
a {mm}
102
115
137
157
b {mm}
18
18
21
21
Description
2 Blades + 1 Handle in Plastic Box.
3 Blades + I Handle in Plastic Box.
4 Blades + 1 Handle in Plastic Box.
